Revolutionising power monitoring with 10x the capacity in the same compact size

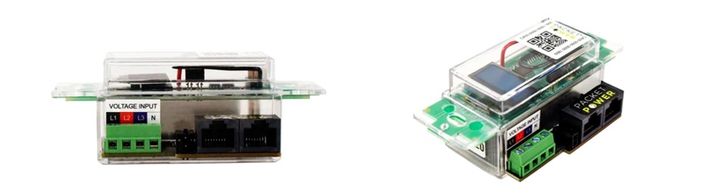

Packet Power’s High-Density Power Monitor is an advanced branch circuit power monitoring solution that delivers real-time energy monitoring in an ultra-compact, simple design. At just 4 inches, Packet Power’s High-Density Power Monitor is the smallest and most scalable multi-circuit power monitoring system on the market, capable of tracking 120 circuits in a space smaller than what’s inside a standard light switch. Eliminate bulky hardware, complex wiring, and time-consuming installations with the full power monitor that redefines what is possible in power and energy monitoring. It is an advanced plug-and-play solution, seamlessly integrates with Packet Power’s EMX monitoring software or any third-party monitoring platform, and supports both wired and wireless connectivity—including secure, air-gapped environments.
Small & Mighty

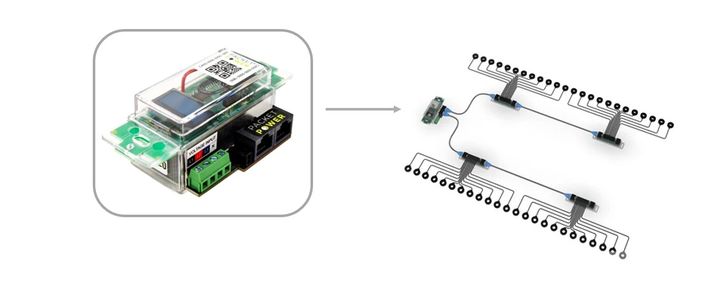

The High-Density Power Monitor is a game changer— monitoring up to 120 circuits without increasing footprint. Its modular, plug-and-play design makes installation quick and easy, with less cabling and unparalleled flexibility. This compact powerhouse redefines what’s possible in full power monitoring.
How It Works
Packet Power’s already renowned, simple installation just got even simpler. The modular High-Density Power Monitoring system quite literally snaps into place — no tools, no complexity. Complete your installation in just 3 easy steps!
1. Attach Current Sensors: Attach the sensor around the wire and snap the Current Sensor Connections into the 12 Current Sensor Module.
2. Connect the Sensor Modules & Power Supply: Connect the 12 Current Sensor Modules to the High-Density Power Monitor using the provided PPBus Cables, and place power supply where it is convenient for you.
3. Get Instant Data: Connect to your preferred DCIM/BMS Application and begin your journey to operational
Highlights & Features
- Ultra compact: Monitors up to 120 circuits with just one meter
- Fast & easy to install: Can be wall-mounted, directly attached via magnets (no tools required, no complexity), or installed under the floor
- Plug & play: Modular design, with minimal cabling.
- Scalable & flexible: Monitor up to 120 circuits with just one meter; expand anytime. Mix single-phase, split-phase, wye, and delta circuits of varying amperages.

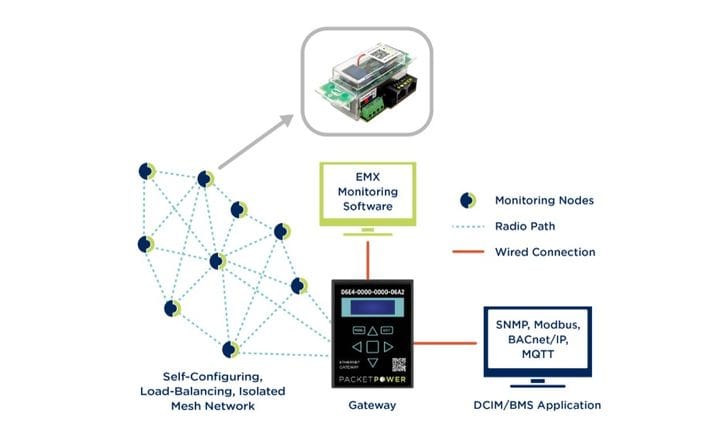

- Seamless integration: Natively integrates with EMX & third-party systems (Modbus, SNMP, MQTT, BACnet).
- Embed anywhere: Fits easily in PDUs, RPPs, Power Strips, Switchgear, and more
- Fits panels from any vendor: Inline, side-by-side, DIN-mounted, or ad hoc
- Time & cost saving: Installs in less than half the time, lowering costs and time to data
- Easy extendable and future proof: Easily scales at any time with the existing system as you add breakers to panels
Packet Power: Simple. Secure. Scalable.
Packet Power solutions make it easy and affordable for facility managers to get the data needed to lower costs, minimise risks and improve operational effectiveness.
Industry Applications
- Branch Circuit Monitoring
- Multi-Circuit Monitoring
- Submetering
- Real-Time Monitoring
- Panel Monitors
- Metered Billing
- Energy Benchmarking
- IT Telemetry
- Power Usage Effectiveness
- Retrofit Power Monitoring
Hardware Applications
- Embedded Panel Monitoring (Branch Circuit, Submeter)
- Embedded rPDUs with Outlet Level Monitoring
- High-Density AI-Driven Installations
- Retrofit Existing Systems
- Custom/OEM Systems
