Packet Power Busbar Monitoring

Easy to install busbar monitoring on new or existing power distribution busbar systems of any manufacturer

Wire-free radio monitoring for busbar solutions

The plug and play busbar monitoring solution that compliments the flexibility of busway solutions: Packet Power’s wireless monitoring is the only true plug and play monitoring system for busbars, avoiding the constraints and complexity of wired monitoring systems. Monitors are automatically recognised and instantly added to the network once energised. There are no difficult set-up requirements and the system is easy to install on new or existing busbar systems of any manufacturer.

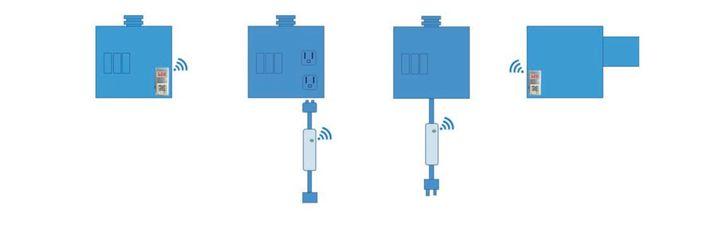

pp busbar monitoring

Wireless with all the reliability of a wired network

Combining a self configuring wireless mesh network with high accuracy (+/- 1% and better) compact power monitors, Packet Powers offers the most secure, reliable and robust network architecture, eliminating all complexities associated with wireless networks and adding the conveniece of wireless.

Monitoring made easy

Monitoring your busway is easy with all information centralised at a Gateway module with a single IP address. Data is available in SNMP or Modbus TCP/IP protocols for easy integration with any third party monitoring system. Using Packet Powers’ EMX portal, you can instantly see all monitored devices, set alarm thresholds, examine usage trends across time and more. EMX also simplifies energy cost allocation and reporting with an array of standard and customisable reports; available as a cloud service or local installed.

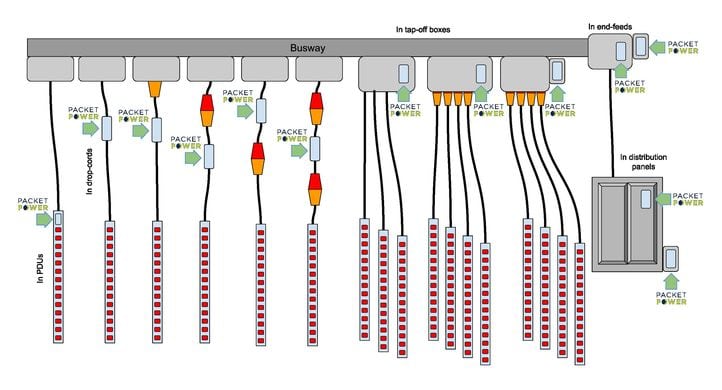

End-Feed solutions

  • Integrated inside the end feed: Power monitor is installed inside of the end feed box. [ideal for new builds]
  • External installation: Power monitor is installed adjacent to the end feed box using a standard single gang box; available as a complete kit for rapid installation (retrofit solution)
  • Multi-phase monitor: Installs in tap-off or end feed modules using split core and solid core CTs and includes a local LED display and wireless node. The compact size permits installation into any system including feeder breakers. Ideal for any multi-phase / multi-pole circuit.

Tap-Off solutions

  • Integrated monitor places the monitoring node inside of tap-off module with the display visible
  • Smart Power Cables integrate the monitor directly into the power cable which can be hardwired into the tap-off unit or provided as a receptacle and plug cable set; three phase and single versions are available for almost any plug/receptacle type.

Highlights

  • Integrates with any manufacturers busway
  • Easy retrofit or new installation options
  • Monitors form a self-configuring network for simple installation
  • Automatic recognition of new devices
  • Only a few IP addresses needed to monitor hundreds of end feedsand tap-offs
  • Integrated local display
  • SNMP or Modbus TCP/IP output (open protocol)
  • The EMX portal seamlessly integrates monitoring hardware, wireless networking, analysis and reporting tools into a ready to run system
  • Integrates with third party BMS and DCIM applications
  • Web based or local monitoring option immediately available after deployment
  • Secure wireless network (not WiFi)
  • Global certifications
  • Proven in entreprise data centers around the world
