ServerLIFT RL-500 Platform Riser

The RL-500 Platform Riser module extends the load platform for ServerLIFT lifter solutions

The RL-500 Platform Riser extends the load platform for ServerLIFT® brand lifting solutions

The SL-350X and SL-500X data centre lifter models have a lifting mechanism where the support arm is vertically extended either manually or by battery (similar to a forklift) to lift the load to the required height in a rack. To ensure that the load can also be lifted in data centre environments with very low or suspended ceilings or low-hanging supply lines by the ServerLIFT® brand data centre lifter up to the very tops of the racks so that the vertically extended support arm does not hit the ceiling, an extension module for the loading platform is available called the RL-500 Platform Riser.

Support for lifting and transporting IT equipment in server rooms with low ceilings, contained racks, low-hanging lines or 3-m racks

The module can be quickly and easily attached with butterfly screws to the lifting platform. This increases the loading surface for the IT equipment by a good 40 cm. The riser can handle total weight of up to 227 kg and reaches the very top levels of the racks. The RL-500 Platform Riser is also ideally suited for use in very low, contained warm and cold aisles and for uneven ceiling surfaces.

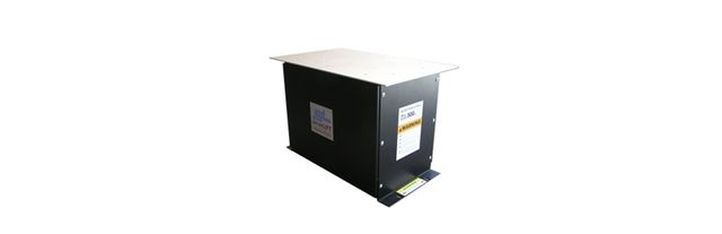

serverlift rl 500



The RL-500 Platform Riser ServerLIFT® brand accessory highlights:

  • Increases the lifting surface by up to 40 cm for the SL-500X and SL-350X data centre lifters
  • Simple and quick attachment of the platform extension to the load surface of the data centre lifters with self-locking butterfly screws
  • Maximum capacity with extension: 227 kg (SL-500X and SL-500) and 160 kg (SL-350X)
  • Prevents the vertically extendable arm of the lifter mechanism from hitting the ceiling, ceiling lines or surfaces of a data centre
  • Makes it possible to lift heavy IT equipment even within a contained warm or cold aisle with very low ceilings
  • In environments with 3 m high racks (ten-foot cabinets), IT equipment can be lifted even up to the highest rack level
