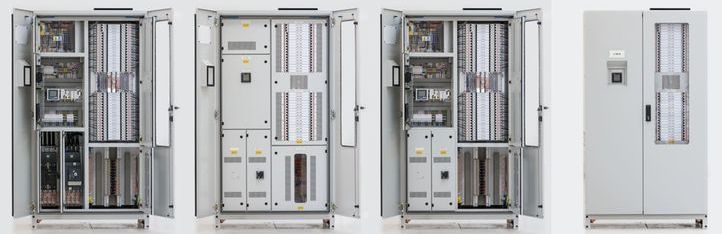

Anord Mardix PDU

Industry leading expertise for innovative PDU technology

Industry leading expertise for innovative PDU technology

Anord Mardix, a Flex company, provides leading expertise for innovative Anord Mardix PDU technology and premium build quality every time. Their PDU (Power Distribution Unit) is one of the most resilient in the market to deliver operational and commercial benefits – and therefore a perfect fit for any data centre or IT room. The reduced footprint design allows optimal space usage for vital data centre equipment without compromising functionality. And the PDU solution can be configured to fit along a wall or at the end of data cabinets and racks. It also offers unrivalled flexibility in relation to the level of redundancy and resilience required, as the system can be configured for single or dual incoming supplies.

anord mardix pdu



Highlights

  • Integrated static transfer switches available
  • K-rated isolation transformers or active harmonic filters available
  • Status, alarm and power monitoring features available over comms/BMS networks
  • ASTA certified plug-in MCCB and MCB panel-boards up to 50 kA/1s
  • 100% or 200% neutral busbar options
  • Optional clean earth bars
  • Bespoke plinths and underfloor gland boxes available
  • Dead front outer doors offered on request
  • Standard live thermographic imaging facilities incorporated as standard
  • Fixed or mobile construction available (depending on size)

Specifications

  • Construction separation: to IEC-61439-2, up to Form 4B Type 6
  • Panel colour: available in all RAL or BS colours
  • Busbar system current rating: 250A to 1250A
  • Busbar system short circuit rating: (36kA/1s) (50kA/1s)
  • Voltage ratings: 400V / 690V
  • Cable access: top or bottom, with custom built underfloor stands
  • Ingress protection: IP 54, IP 42 or IP31
