Deeper rack operations for racking servers and IT equipment

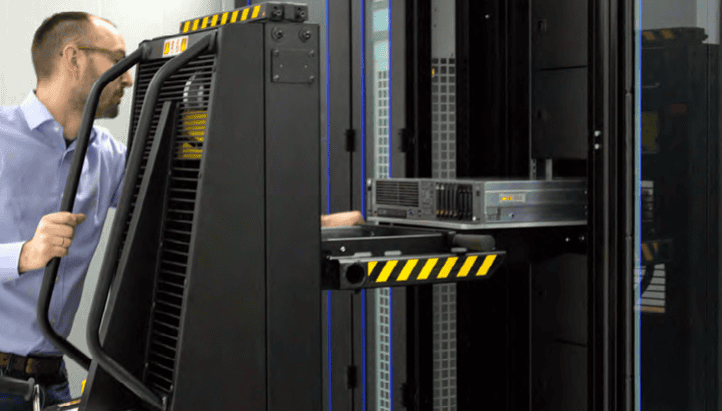

The IXOLIFT DataLIFT F PRO has been specifically designed to easily lift, move and install servers and IT equipment anywhere in the data centre up to a height of 2.4 metres. The maximum load may be up to 200 kg (400 lbs). A single operator is able to navigate any load through doorways, narrow cabinet row aisles and rotate on its own axis providing exact manoeuvrability for quick installations.
Certified for safety and compliance
The front loading capabilities allows the operator to access deep into the rack. The remote control allows platform movement from any location. The dual mast design allows for viewing through the unit whilst moving and ensures even the heaviest loads do not deflect the platform angle. The wide break bar allows for easy activation even when wearing large PPE boots. A lever on the control panel locks and releases the front wheels for accurate navigation. Conforms to all the new Health and Safety Regulations and Standards including emergency stop button. The equipment lifter complies with both European and international regulations, including Directive 2006/42/EC (Machinery Directive), EN ISO 3691-5:2020 11 (Industrial trucks – Safety requirements for manually operated trucks), EN ISO 12100:2010 (General principles for design – Risk assessment and risk reduction).

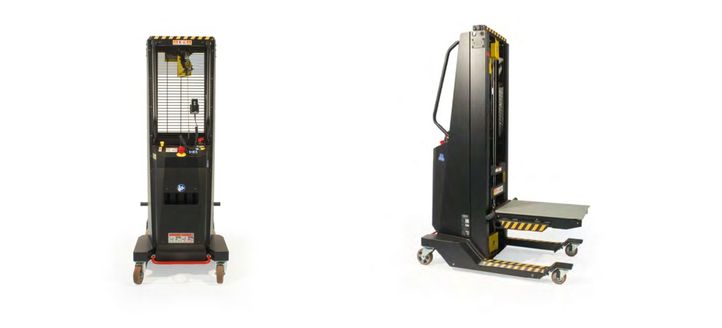

The highlights of the DataLIFT F PRO Front Loading Lifter
- Front loading capabilities for installations deep into the rack
- Prevents the risk of injury and IT equipment damage
- Meets all Health and Safety lifting regulations
- Emergency stop button on control panel
- Large brake bar for easy use with PPE equipment
- Allows a single operator to perform moves and installations
- Remote control to see load from both sides of platform
- Front wheel lock/unlock on control panel
- Insulated safety stop for overhead obstacles
- Maximum height 2.4m with 200 kg (400 lbs) and above 1.5m with 125 kg (275 lbs)
- Large platform supporting equipment without closed housing
- 24VAC winch motor for extended use and smooth operation
- Oil-free gearbox prevents leaks
- IP21 RATING
- CE, EN ISO 3691-5:2020-11, EN12100, EN ISO 13849-1
- Designed and manufactured in Finland
