Heavy duty lifting and moving solution for servers and IT equipment in the data centre

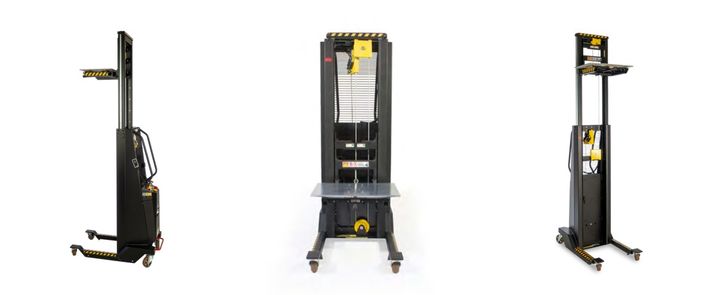

The heavy duty IXOLIFT DataLIFT E MAX has been specifically designed to easily lift, move and install servers and IT equipment anywhere in the data centre up to a height of 2.4 metres. At this height, the maximum load is 250 kg (550 lbs). The maximum height with 500 kg (1100 lbs) load is 1.5 m. A single operator is able to navigate any load through doorways, narrow cabinet row aisles and rotate on its own axis providing exact manoeuvrability for quick installations. The side loading capabilities allows the operator to work from either the left or right hand side of the unit.
Compliant with European and international safety standards

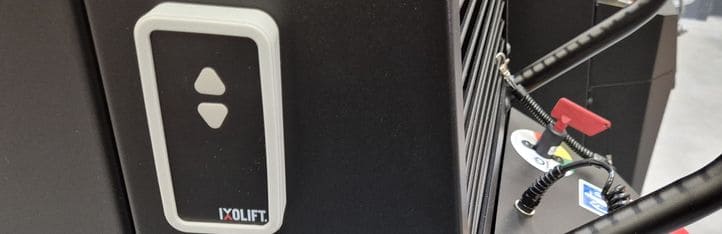

The remote control allows platform movement from any location. The dual mast design allows for viewing through the unit whilst moving and ensures even the heaviest loads do not deflect the platform angle. The wide break bar allows for easy activation even when wearing large PPE boots. A lever on the control panel locks and releases the front wheels for accurate navigation. Conforms to all relevant Health and Safety Regulations and Standards including emergency stop button.
The highlights of the DataLIFT E MAX
- Prevents the risk of injury and IT equipment damage
- Meets all Health and Safety lifting regulations
- Emergency stop button on control panel
- Large brake bar for easy use with PPE equipment
- Allows a single operator to perform moves and installations
- Remote control to see load from both sides of platform
- Front wheel lock/unlock on control panel
- Insulated safety stop for overhead obstacles
- Maximum height 1.5 m with 500 kg (1100 lbs) and 2.4m with 250 kg (550 lbs)
- Large platform supporting equipment without closed housing
- Platform slides 175 mm to each side
- 24VAC winch motor for extended use and smooth operation
- Oil-free gearbox prevents leaks
- IP21 Rating
- CE, EN ISO 3691-5:2020-11, EN12100, EN ISO 13849-1
- Designed and manufactured in Finland
